Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
LNK-IMC408GL-SFP Managed Industrial 8-Port Ethernet Switch Overview

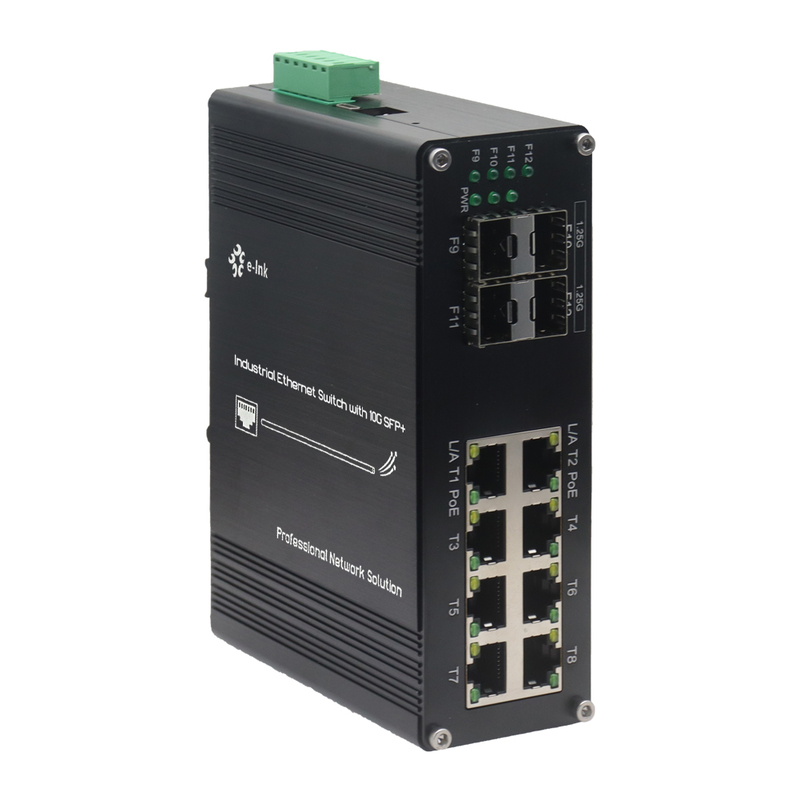

The LNK-IMC408GL-SFP series is a hardened, managed, eight-port, 10/100/1000Base-T switch with four SFP fibre ports. It is built for industrial and outdoor networking. It features eight Gigabit Ethernet ports (auto-negotiating and MDI/MDI-X) and four 1000Base-X SFP slots supporting single- and multi-mode fibre. Designed for use in harsh environments, it provides a reliable connection for IP cameras, wireless access points, and remote networks, offering advanced management and flexible fibre connectivity.
LNK-IMC408GL-SFP Managed Industrial 8-Port Ethernet Switch Features
- Supports 8×10/100/1000Base-T RJ45 ports and 4×1000Base-X SFP fiber ports
- RJ45 ports support full/half-duplex , auto-negotiation , and Auto MDI/MDIX functions
- DIP switch for serial port configuration
- Supports 16K bytes jumbo frames for improved transmission efficiency
- Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard for reduced power consumption
- IP40-rated aluminum housing for enhanced durability and protection
- Wide-range 12–48V DC power input for flexible deployment
- DIN-rail mount design for easy industrial installation
- Operating temperature range: -40°C to +80°C (-40°F to +176°F) for harsh environments
LNK-IMC408GL-SFP Managed Industrial 8-Port Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3p QoS
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
2.75M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
32Gbps
|
|
Max Packet Length:
|
16K Bytes Jumbo Frame
|
|
Address Table Size:
|
16K MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Optical Port:
|
4 x 1000Base-X SFP
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 100,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
<16W
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|

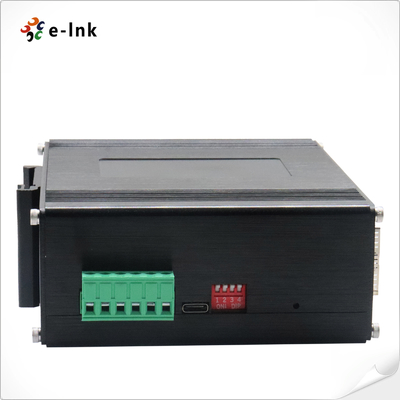

DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
Switch serial port mode
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
reserved
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3
|
reserved
|
ON - Enabled
|
OFF - Disabled
|
|
SW 4
|
reserved
|
ON - Enabled
|
OFF - Disabled
|
|

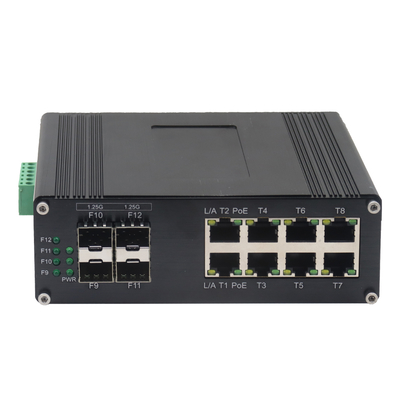

LED Indicators:
|
|
PWR:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
Gigabit SFP Port: F9~F12
|
|
Dimensions (WxDxH):
|
149 x 114 x 50 mm
|
|
Weight:
|
0.55Kg
|
|
Casing:
|
Aluminum Case
|
|

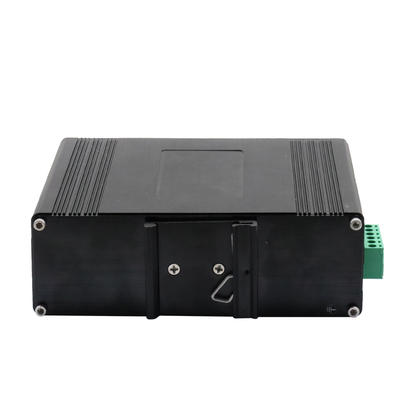

Mounting Options:
|
DIN-Rail mount
|
|
WEB Management Functions
|
|
System Status
|
Device IP
|
|
Port Configuration
|
Port Settings, Port Isolation, Port Priority, Optical Power DDM, Port Rate Limiting, Storm Control
|
|
Layer 2 Features
|
VLAN Configuration, MAC Address Management, MAC Address Aging, 802.1p Priority Mapping, Queue Scheduling, ACL, MTU Configuration
|
|
Port Statistics
|
Port Counters
|
|
Link Backup
|
ERPS, Port Aggregation, Rapid Spanning Tree
|
|
Network Diagnostics
|
Port Mirroring
|
|
System Management
|
Device Address, User Password, File Management
|
|
Default IP Address
|
192.168.40.253
|
|
Default Username
|
admin
|
|
Default Password
|
admin
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC408GL-SFP
|
Industrial 8-Port 10/100/1000T+ 4-Port 1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
LNK-IMC408GLP-SFP Managed Industrial 8-Port Ethernet Switch Application
