Industrial 10/100/1000Mbps 802.3bt PoE+ +Splitter Output Voltage 24VDC
Industrial Gigabit PoE Splitter Overview
The LNK-INS901-24V Series is an industrial-grade Gigabit Power over Ethernet (PoE) splitter
that delivers both data (via RJ45) and 24V power (via screw terminals) to non-PoE devices.
This product is compatible with IEEE 802.3af/at/bt PoE switches, thus eliminating the need
for separate power wiring while maintaining full Gigabit speeds up to 100 metres.
This robust splitter is designed for tool-free, plug-and-play installation, ensuring seamless
integration with LNK-INJ-48-95W PoE injectors. It is ideally suited for use with IP cameras,
wireless access points, and industrial IoT devices in challenging environments.
Industrial Gigabit PoE Splitter Features
-
Separates power and data from a PoE input source
-

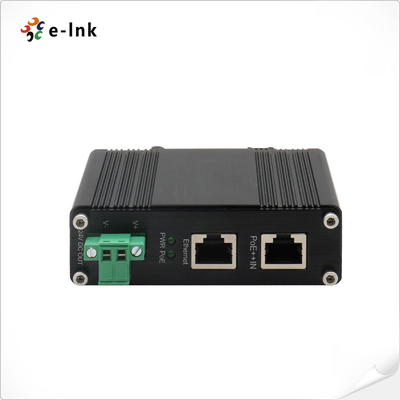

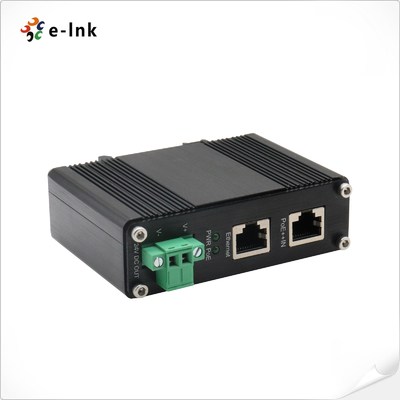

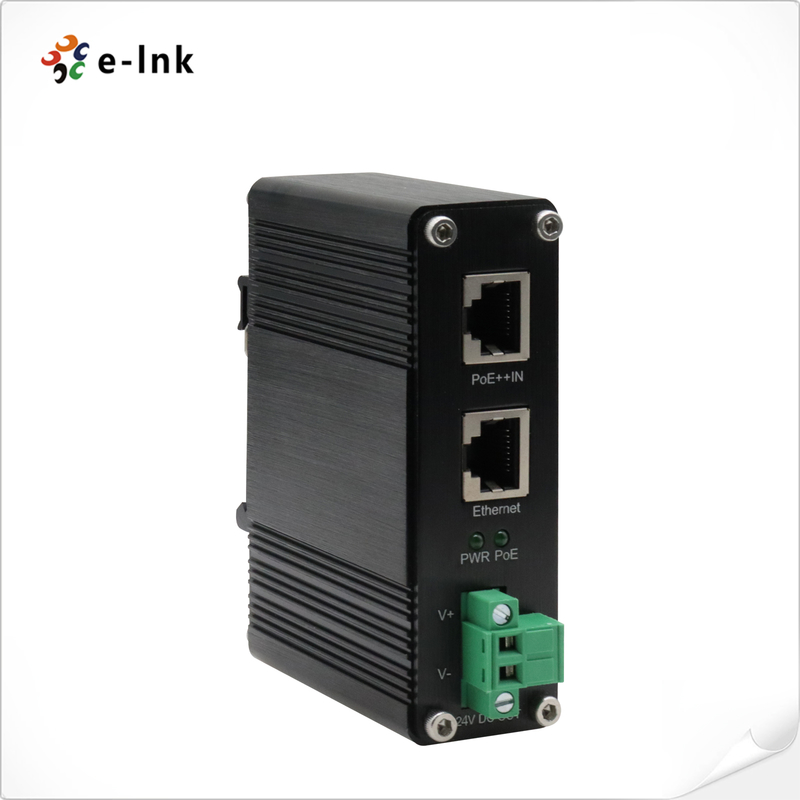

1× RJ45 PoE port (Data & Power In) and 1× RJ45 port (Data Out)
-
1× 24V DC output via 2-pin terminal block
-
Compliant with IEEE 802.3af/at/bt (PoE++) standards
-
Supports 10/100/1000Base-T Ethernet
-
Transmission distance up to 100 meters
-
Short-circuit protection for power output
-
IP40-rated rugged metal housing , fanless design for reliable operation
-
Supports DIN-rail and wall-mount installation
-
Equipped with LED indicators for PoE and diagnostics
-
Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)
Industrial Gigabit PoE Splitter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 10Base-T Ethernet
|
|
IEEE 802.3u 100Base-TX Fast Ethernet
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet
|
|
IEEE 802.3af Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,000pps (1000Mbps)
|
|
Cabling:
|
1000Base-T: Cat5 or above
|
|
Maximum Distance:
|
Cat5 UTP up to 100m
|
|
Interface:
|
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
|
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block
|
|
Power over Ethernet
|
|
PoE Standard:
|
IEEE 802.3af/at/bt Power over Ethernet
|
|
Number of devices that can be powered:
|
1 (24VDC)
(Vary on device’s power requirement; cannot be over 40 watts.)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Power Output:
|
40W 24VDC (Terminal Block)
|
|
Power Consumption:
|
45W Max.
|
|
LED Indicators:
|
|
PWR:
|
24VDC Power OUT
|
|
POE:
|
PoE Power IN
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500W
|
|
ESD: 4KV/8KV
|
Industrial Gigabit PoE Splitter Ordering Information
|
Model
|
Description
|
|
LNK-INS901-24V
|
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
|
|
Mounting Options
|

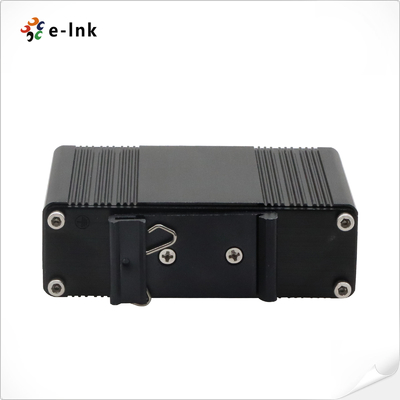

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
Industrial Gigabit PoE Splitter Dimension
Industrial Gigabit PoE Splitter Application
